Lab 18650 26650 32650 10 Channels Battery Sorter Sorting Machine for Cylindrical Battery Pack Research
Product Description
The Laboratory Battery Cell Grading Machine is a specialized and highly efficient device designed to meet the precise needs of battery cell evaluation and classification in laboratory settings.
This machine is equipped with 10 dedicated channels, specifically tailored to handle 18650 and 21700 battery cells. It employs advanced grading algorithms and high-precision measurement technologies. The machine can accurately measure various key parameters of the battery cells, such as voltage, internal resistance, and capacity. Based on these measurements, it classifies the cells into different grades with remarkable precision, ensuring that only cells of consistent quality and performance are grouped together.
The machine is capable of accurately sorting battery cells based on various parameters, ensuring consistent quality and performance. With its user-friendly interface and reliable operation, it simplifies the sorting process and saves time.
The automatic sorting device consists of feeding mechanism, detection mechanism, automatic sorting mechanism and receiver mechanism. The machine system designs and develops the upper computer software according to the user's requirement, and automatically classifies the batteries according to the grouping information, and collects them into the corresponding receivers.
Product Features
1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
2. 10 Channel automatic cell sorter is designed to sort cylindrical cells
3. Sort by cell's voltage and impedance up to 10 groups
4. Automatic sorting control
5. Fast sorting speed ≥90PPM
6. Easy to refill cells during the process
7. Wheels design, easy to move the machine to any operating place
8. Sortting channel: 5-22 optional
Product Specification
| Model | MD-BS10 |
| Power supply | AC220V ± 10% 50Hz |
| Power Consumption | ≤1000W |
| Display Screen | Large size LCD screen/Touch screen |
| Compressed Air Pressure | 0.5 ~ 0.7Mpa |
| Sorting Speed | ≥ 90PPM |
| Chance of Damaged Product | ≤0.1% |
| NG Equipment Failure Rate | ≤0.1% |
| Open Circuit Voltage Accuracy | ± 0.1% rdg Display Resolution: 0.1 millivolt |
| AC Resistance Accuracy | ± 0.5% rdg Display Resolution: 0.1 milliohm |
| Productivity | 5000pcs/h |
| Dimension | 1330x920x1600mm |
| Adaptation Battery | Cylindrical Battery (18650,32650,18500,26650,14500,21700 etc.) |
| Receiving Channel | 10 channels |
| Operating Temperature Range | 25 ° C ± 5 ° C |
| Humidity | ≤85% |
| Total weight | 300kg |
Battery cell soring machine structure

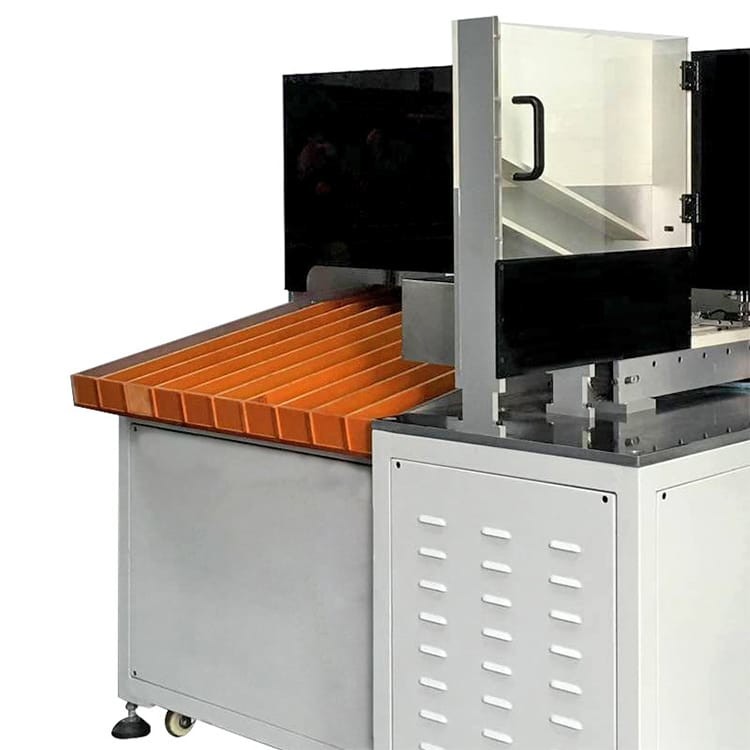

Battery cell sorting machine details
