CCD Cell Polarity Inspection Machine For Battery Pack Inspection

Brand Name : XWELL

Model Number : XW-CCD

Certification : CE

Place of Origin : China

MOQ : 1 PCS

Price : USD3000-5000/PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 PCS a month

Delivery Time : 5-20 days

Packaging Details : Wooden box

Compliance : CE Certified

Lead Time : 7days

Test Speed : 0.1-500mm/min

Working Voltage : AC 220V 50Hz~60Hz

Itinerary : 200mm

Control Method : Computer Control

Voltage Range : 0-150V

Charge Current : 20A

Sustainable Load Power : 6KW

Data Output : EXCEL,TXT

Test Temperature : 130C+2.0℃;( No-load test)

Minimum Air Pressure : 5.0KPa

Communication Means : TCP/IP Protocol

Electric Axis Stroke : ≥450mm

Contact Now

CCD Cell Polarity Inspection Machine For Battery Pack Inspection

1. Function description

CCD visual inspection machine is actually a detection device that transmits the collected image signals to a dedicated image processing system through the CCD image sensor of a machine vision product, and converts the signals into digital signals based on the distribution of pixels and information such as brightness and color; the image system performs various operations on these signals, extracts the characteristics of the target, and then controls the action of the on-site equipment based on the judgment results.

CCD visual inspection equipment can replace the human eye for measurement and judgment, and is used for the production, assembly or packaging inspection of valuable equipment.

2. Process flow

Feeding and positioning of electric core → positive and negative pole detection → positive and negative solder joint detection (CCD) → NG automatic sorting → OK automatic discharging

Parameter

item value
Power supply AC220V/50Hz
Power 600W
Suitable for cell 14430, 14500, 18500, 18620, 21700, 26650...
Inspection size 400*300 mm, customizable
Inspection degree 360°
Inspection speed 1 s/pcs
Merchine Size L850*W80

Details:

CCD Cell Polarity Inspection Machine For Battery Pack Inspection


Product Tags:

CCD battery pack inspection machine



battery pack polarity tester



cell polarity inspection machine with warranty

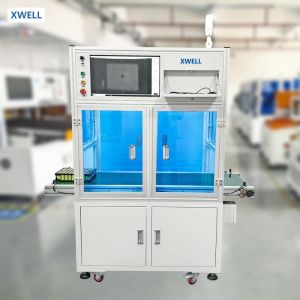

Quality CCD Cell Polarity Inspection Machine For Battery Pack Inspection wholesale
