Fully Automatic CNC Single-Sided Point Lithium Battery Pack Spot Welding Machine
Battery Spot Welding Machine Description
The combined single-sided automatic welding of cylindrical cells welds pure nickel sheets or nickel-plated steel with the positive and negative steel shells of the cells.
Battery Spot Welding Machine Features
1. Automatic welding, uniform solder joints, good consistency, improve the qualified rate
2. Real-time welding current monitoring, false welding or fire alarm and automatic shutdown
3. Manually adjust automatic area repair welding, single point repair welding
4. The operating mechanism adopts servo motors with linear modules for precise positioning
Battery Spot Welding Machine Advantages
1. Welding stroke can be customized
2. Suitable for various kinds of battery pack
3. High speed welding
4. 7-inch touch screen, more convenient operation, clearer display
5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle
temperature on welding quality.
6. Can store up to 999 groups of files, the file issimple to call,
does not require complicated line changing process
7. One-key calibration function for total shift ofsolder joints, which can be calibrated for spot shift caused by changing the
solder pin or other reasons8. Electric or pneumatic spot welding machine is optional
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz |
| Air Source | 0.4-0.6 Mpa |
Battery Spot Welding Machine Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Battery Spot Welding Machine Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, MD-ASW automatically complete all welding actions.
4. MD-ASW sound to prompt operator replacement of new fixture (battery pack).
Single side battery welding machine structure
Single side spot welding machine details

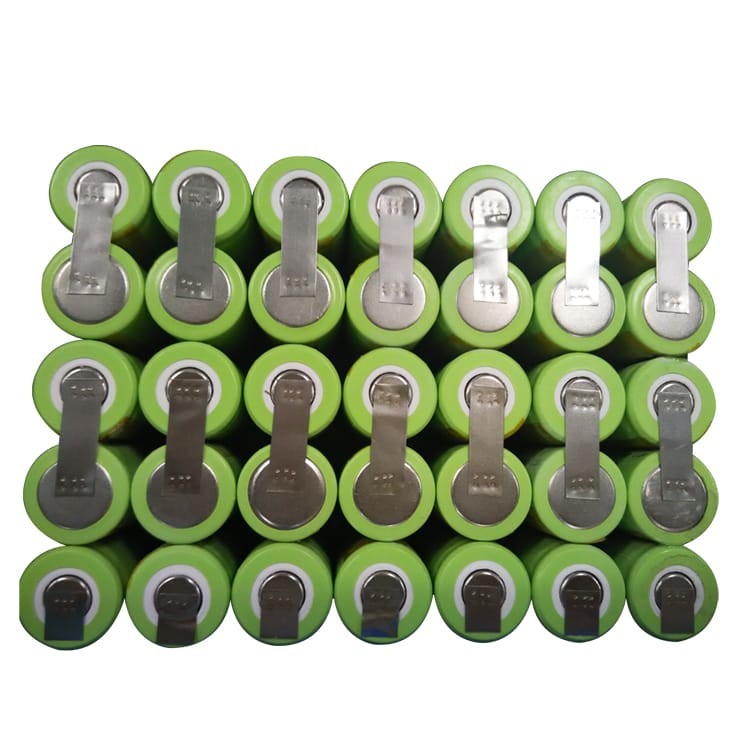

Battery pack welding samples
